Sizing

Tools Needed:

- Measuring Tape

- Painter’s Tape

Steps:

1. Place painter’s tape 2" from edges on front bumper, sides, and rear (follow curves).

2. Peel tape and measure each section.

3. Record lengths.

4. Divide front & rear measurements by 2 for strip sizes.

5. Select your kit based on measurements.

Now Your Ready To Order Your Underglow Max!

Install

Tools Needed:

• Rubbing alcohol
• Clean cloths
• Heat gun or blow dryer


• Clear silicone (if needed for uneven surfaces or gaps)

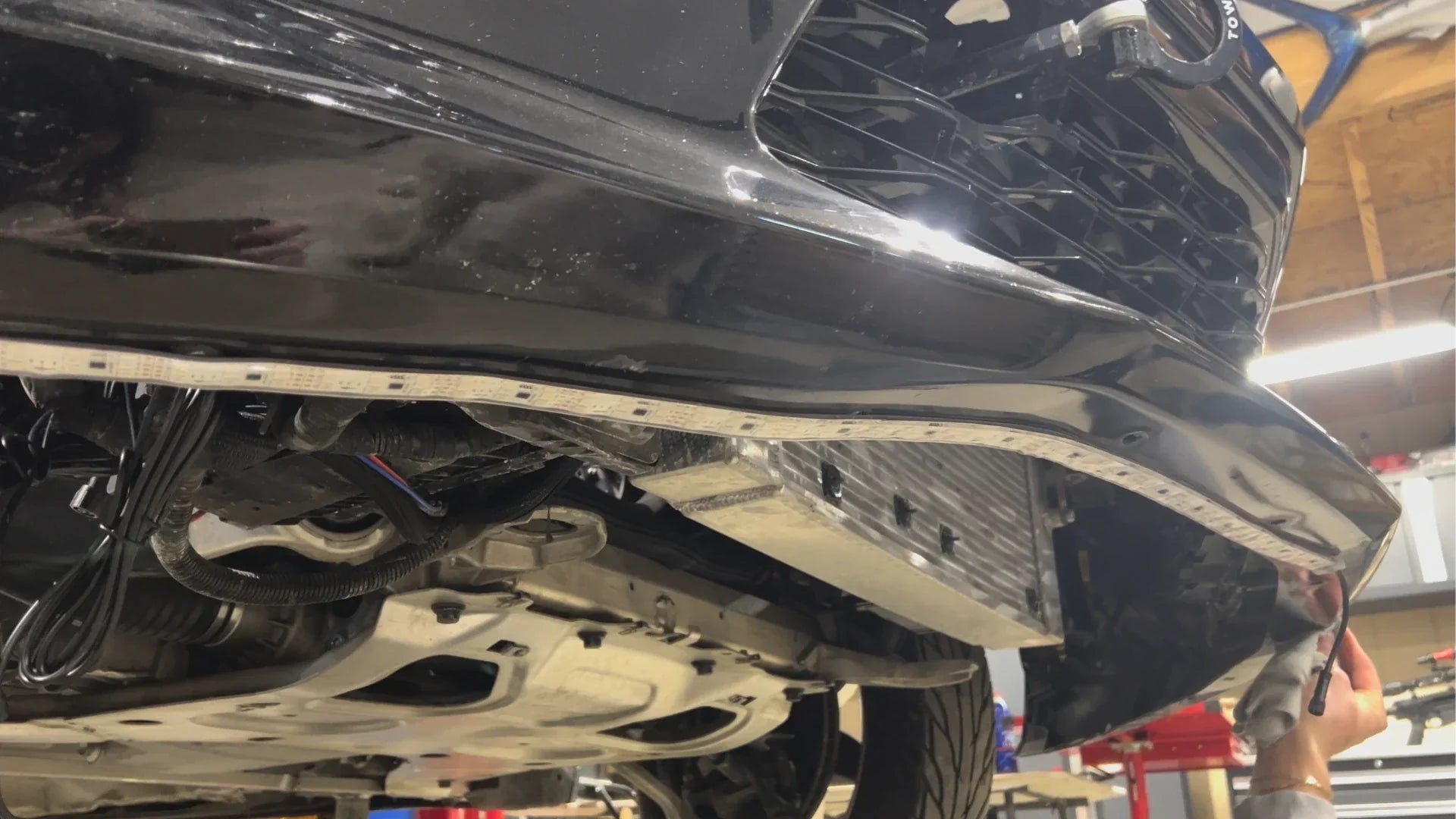

1. Unpack strips, lay out front/side/rear (arrows rearward). Test before mounting.

2. Degrease surfaces with rubbing alcohol; wipe dry.

3. Peel adhesive, press strips 2" from edges, follow contours.

4. Use silicone for the edge of gaps if needed.

5. Connect receiver in engine bay, zip-tie wires, avoid heat.

6. Cure adhesive with heat gun 1–2" away.

7. Power on, customize via BanlanX app (Apple) (Android) or remote (video below).

8. Optional Stealth Strips: Install 1" in front of LEDs using same steps.
